Description
Introducing the MACH-1 RACING M62SR: A Precision Powerhouse
Elevate your RC experience with the MACH-1 RACING M62SR, a high-performance, low-profile digital servo engineered for precision and durability. Crafted with cutting-edge technology and premium materials, this servo delivers exceptional performance in demanding applications.
Key Features:
- Unmatched Speed and Torque: Powered by a high-quality brushless motor, the M62SR offers exceptional speed and torque, ensuring precise control and rapid response times.
- Robust Construction: The servo’s full CNC aluminum case provides superior durability and efficient heat dissipation, ensuring optimal performance even under intense conditions.
- Water and Dust Resistance: Built to withstand the elements, the M62SR is designed for reliable operation in challenging environments.
- Versatility: Ideal for a wide range of RC applications, including 1/10 on-road and off-road cars and trucks, planes, drift cars and more.

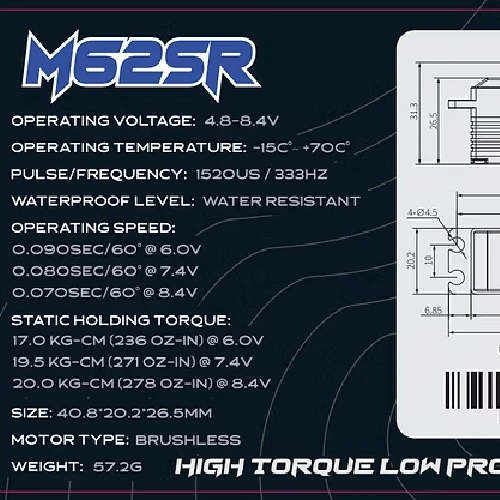

Technical Specifications:
- Stall Torque:
- 14.0 kg-cm (195 oz-in) @ 4.8V
- 17.0 kg-cm (236 oz-in) @ 6.0V
- 19.5 kg-cm (271 oz-in) @ 7.4V
- 20.0 kg-cm (278 oz-in) @ 8.4V
- Operating Speed:
- 0.105 sec / 60° @ 4.8V
- 0.090 sec / 60° @ 6.0V
- 0.080 sec / 60° @ 7.4V
- 0.070 sec / 60° @ 8.4V
- Other specifications:
- Size: 40.8mm x 20.2mm x 26.2mm
- Weight: 57.2g
- Gears: Stainless Steel
- Frequency: 1520uS 333Hz
- Operating Temperature: -15c to 70c
- Spline: 25t
Experience the MACH-1 RACING Difference:
The M62SR is more than just a servo; it’s a precision tool designed to enhance your RC experience. With its exceptional performance, durability, and versatility, it’s the perfect choice for serious racers, bashers and professionals alike.
